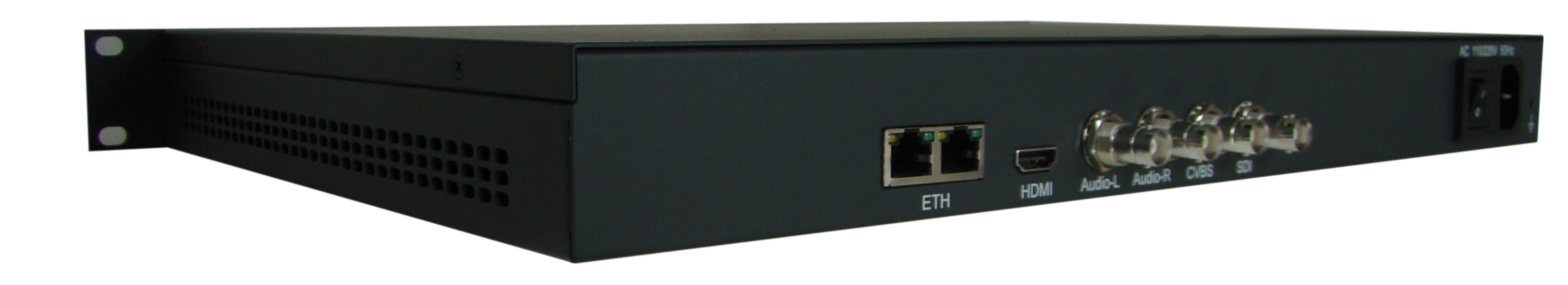

AU-NME9000 network media encoder adopts h.264/avc video compression algorithm and MPEG4 aac audio compression algorithm, which also has excellent video performance and audio restoration under the harsh conditions of low network bandwidth. At 1Mbps video rate and 30kbps audio rate, 1080p25 / 30 HD video can be perfectly presented. Using low delay coding technology, 1080p25 coding delay is less than 300ms.

In order to adapt to various complex network audio and video application environment, AU-NME9000 provides rich streaming media protocols, such as RTMP, RTSP / RTP, HTTP, UDP, etc. Users can watch live video through web page, iPad, iPhone, aandriod and network set-top box. It can be widely used in emergency communication, network video live broadcast, mobile video live broadcast, remote conference, campus broadcast, hospital expert consultation and many other application fields. It is an ideal device for mobile live broadcast.

FEATURES

• High stability, embedded design, low power consumption.

• Low compression code rate, 1080p25 1Mbps

• Triple B frame prediction can reduce bandwidth to the greatest extent under the condition of excellent image quality

• Strong business adaptability, supports output protocol UDP, HTTP, rtsp/rtp, RTMP

• Cost effective, HDMI, hd/sd-sdi, CVBS and analog audio and video input supported


• Support h.264/avc high profile, main profile, baseline and other coding levels

• Audio coding supports AAC, MPEG1, audio layer 2

• Support 1080p, 1080i, 720p and PAL NTSC video format input

• Support up to 1080p, and any down conversion resolution output

• Support to publish real-time live streaming to Adobe FMS, wowza, red5 and other streaming media servers

• Easy to use, embedded web configuration, and LCD + key configuration of front panel of equipment
